10132698 | Fischer Elektronik

Die-cast aluminum shell housing, (L x W x H) 86 x 84 x 33.5 mm, black, 10132698

Order No.: 66H273
EAN: 4099889543636
MPN:
10132698
RSP 1 MSL
Series: RSP

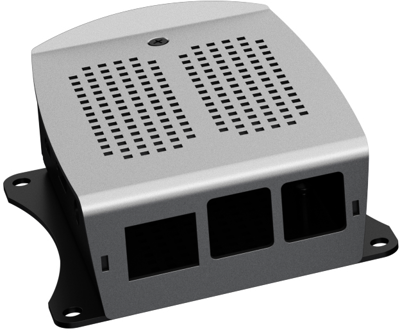

10132698 Fischer Elektronik General Purpose Enclosures Image 1

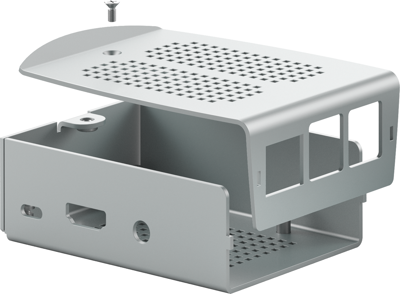

10132698 Fischer Elektronik General Purpose Enclosures Image 2

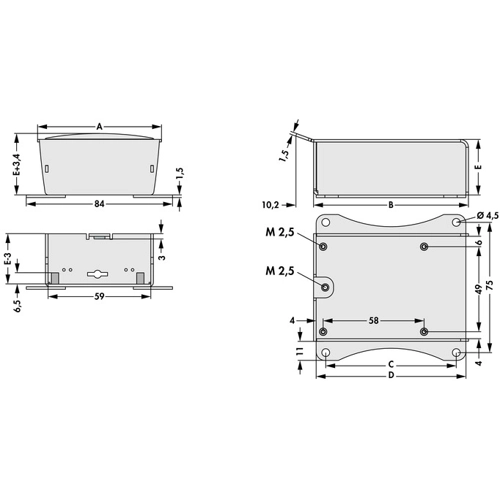

10132698 Fischer Elektronik General Purpose Enclosures Image 3
Image may differ
Unit Price (€ / pc.)
41.8404 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
41.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
41.8404 €

Aluminum shell housing, 10132698, Fischer Elektronik

The 10132698 solid case made of 1.5 mm thick aluminium half shells is designed for the single board computer Raspberry Pi. This product has ventilation slots in the upper and lower part for an improved heat transport and is easy to install thanks to an easy screwing.

Technical specifications
Colour black
Width 84 mm
Height 33.5 mm
Length 86 mm
Material die-cast aluminum
Logistics
Country of origin DE
Customs tariff number 76169990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
