10045799 | Fischer Elektronik

Aluminum enclosure, (L x W x H) 100 x 84 x 39 mm, gray/red, IP67, 10045799

Order No.: 60H8564
EAN: 4099889520118
MPN:
10045799
SEC 84 39 100 ME KR
Series: SEC

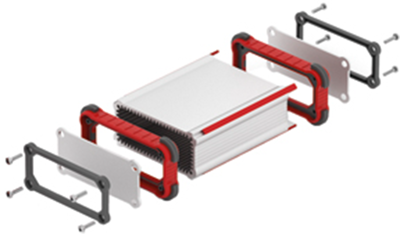

10045799 Fischer Elektronik General Purpose Enclosures Image 1
10045799 Fischer Elektronik General Purpose Enclosures Image 2

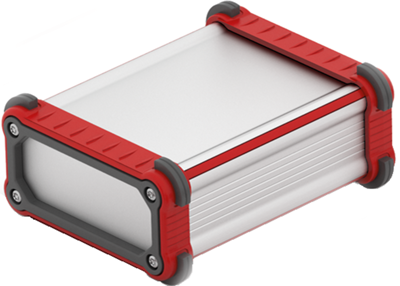

10045799 Fischer Elektronik General Purpose Enclosures Image 3
Image may differ
Unit Price (€ / pc.)
26.6917 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
26.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.6917 €

Aluminum enclosures series SECCO, type Fischer SEC 58../84.

With integrated guide grooves for the insertion of PCBs or components, impact-resistant plastic covers, and seal. Options for integrating front films or membrane keyboards; Degree of protection: IP 67. Finish: anodized in plain color.

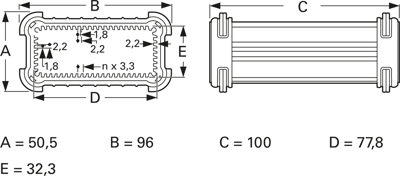

Technical attributes (type, outer dimensions (A x B x C), inner dimensions (D x E)): SEC 84 39 100 ME, 50.5 x 96 x 100 mm, 77.8 x 32.3 mm.

Technical specifications
Colour gray/red
Degree of protection (IP) IP67
Width 84 mm
Height 39 mm
Length 100 mm
Material aluminum
Logistics
Country of origin DE
Customs tariff number 76169990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
