10035461 | Fischer Elektronik

Aluminum enclosure, (L x W x H) 120 x 131 x 53.5 mm, gray, IP54, 10035461

Order No.: 60H8597
EAN: 4099889520408
MPN:
10035461
FR K 120 42 120 SA
Series: FR K

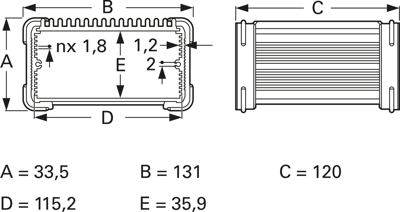

10035461 Fischer Elektronik General Purpose Enclosures Image 1

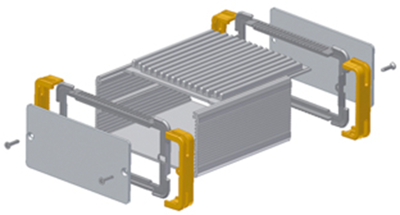

10035461 Fischer Elektronik General Purpose Enclosures Image 2

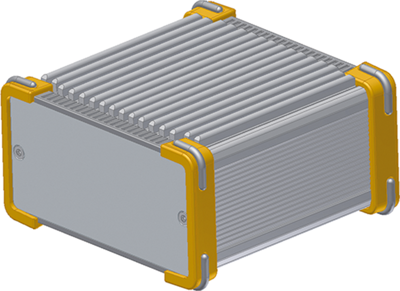

10035461 Fischer Elektronik General Purpose Enclosures Image 3
Image may differ
Unit Price (€ / pc.)
48.2188 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
48.22 € *
Price list
Quantity
Price per unit*
1 pcs.
48.2188 €
5 pcs.
43.3874 €
10 pcs.
39.0677 €
*incl. VAT plus shipping costs
Subject to prior sale

Aluminum enclosures with integrated heatsink series Frame, type Fischer FR K.

With guide grooves for the insertion of non-standard PCBs or components, impact-resistant plastic covers and seals.

Technical specifications
Colour gray
Degree of protection (IP) IP54
Width 131 mm
Height 53.5 mm
Length 120 mm
Material aluminum
Logistics
Country of origin DE
Customs tariff number 76169990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
