Aluminum enclosure, (L x W x H) 100 x 63.6 x 33 mm, gray, IP54, 10035341

Order No.: 60H8572
EAN: 4099889520156
MPN:
10035341
FR 55 25 100 ME
Series: FR
10035341 Fischer Elektronik General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
18.0404 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
18.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
18.0404 €

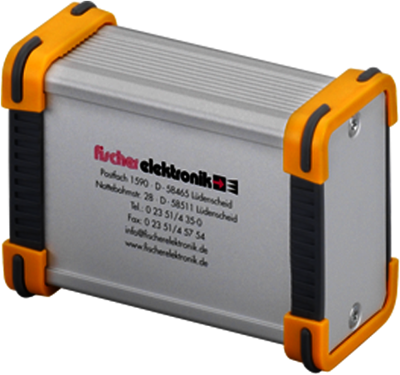

Aluminum enclosures series Frame, type Fischer FR.

With guide grooves for the insertion of PCBs or components, impact-resistant plastic covers and seals. Options for integrating front films or membrane keyboards; Finish: anodized in plain color.

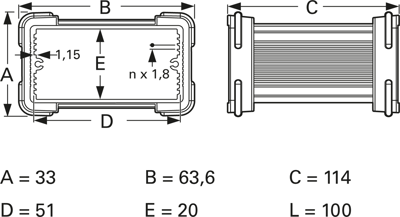

Technical attributes (type, outer dimensions (A x B x C), inner dimensions (D x E x L)): FR 55 25 100 ME, 33 x 63.6 x 114 mm, 51 x 20 x 100 mm.

Technical specifications
Colour gray
Degree of protection (IP) IP54
Width 63.6 mm
Height 33 mm
Length 100 mm
Material aluminum
Logistics
Country of origin DE
Customs tariff number 76169990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
