Aluminum enclosure, (L x W x H) 160 x 120 x 53.5 mm, gray (RAL 7005), IP54, 10035305
Unit Price (€ / pc.)
37.1161 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
37.12 € *
Price list
Quantity
Price per unit*
1 pcs.
37.1161 €
2 pcs.
34.7242 €
5 pcs.
32.6179 €
10 pcs.
30.3212 €
*incl. VAT plus shipping costs
Subject to prior sale

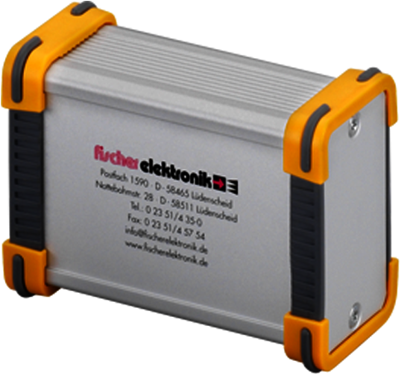

Aluminum enclosures series Frame, type Fischer FR.
With guide grooves for the insertion of PCBs or components, impact-resistant plastic covers and seals. Options for integrating front films or membrane keyboards; Finish: anodized in plain color.

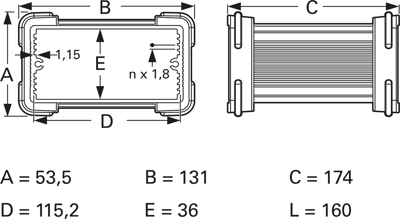

Technical attributes (type, outer dimensions (A x B x C), inner dimensions (D x E x L)): FR 120 42 160 ME, 53.5 x 131 x 174mm, 115.2 x 36 x 160 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | aluminum | |
| Length | 160 mm | |
| Width | 120 mm | |
| Height | 53.5 mm | |
| Colour | gray | |
| RAL number | 7005 | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 76169990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
