10035280 | Fischer Elektronik
Aluminum enclosure, (L x W x H) 120 x 105 x 63.5 mm, gray (RAL 7005), IP54, 10035280
Unit Price (€ / pc.)
29.8452 € *
Standard delivery time from the manufacturer is: 3 Weeks
Aluminum enclosures series Frame, type Fischer FR.
With guide grooves for the insertion of PCBs or components, impact-resistant plastic covers and seals. Options for integrating front films or membrane keyboards; Finish: anodized in plain color.

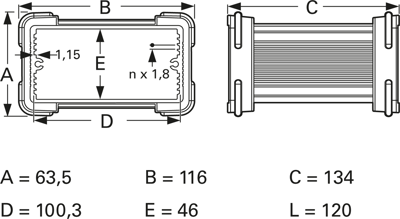

Technical attributes (type, outer dimensions (A x B x C), inner dimensions (D x E x L)): FR 105 52 120 ME, 63.5 x 116 x 134 mm, 100.3 x 46 x 120 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Width | 105 mm | |
| Material | aluminum | |
| Degree of protection (IP) | IP54 | |
| Height | 63.5 mm | |
| Length | 120 mm | |
| RAL number | 7005 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 76169990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
