10038936 | Fischer Elektronik
Fan aggregate, 12 V, ball bearing, 41 dB, (H x W x D) 25 x 60 x 60 mm, 10038936
Unit Price (€ / pc.)
116.8580 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
116.86 € *
Price list
Quantity
Price per unit*
1 pcs.
116.8580 €
2 pcs.
114.4780 €
5 pcs.
108.7660 €
10 pcs.
100.0790 €
*incl. VAT plus shipping costs
Subject to prior sale

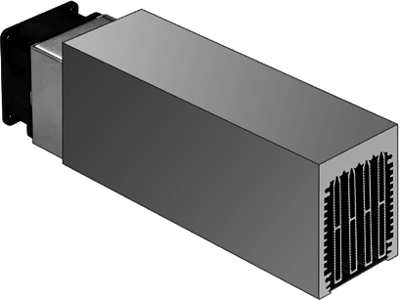

High-performance cooling systems with integrated fan, type Fischer LAV 6-.

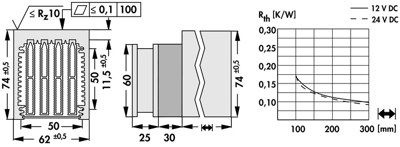

With air chamber, silver colored heatsink, Papst fan with ball bearings, milled mounting surface for cooling semiconductor elements and other components. Heatsink width: 62 mm, Heatsink lenght: 150 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 60 mm | |
| Type of bearing | ball bearing | |
| Rated voltage | 12 V | |
| max. operating temperature | 70 °C | |
| Sound pressure level | 41 db | |
| Height | 25 mm | |
| Width | 60 mm | |
| min. operating temperature | -20 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84145995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
