10038594 | Fischer Elektronik
Fan aggregate, 24 V, ball bearing, 48 dB, (H x W x D) 32 x 80 x 80 mm, 10038594
Unit Price (€ / pc.)
197.0521 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
197.05 € *
Price list
Quantity
Price per unit*
1 pcs.
197.0521 €
3 pcs.
191.1497 €
10 pcs.
184.5571 €
25 pcs.
179.6543 €
*incl. VAT plus shipping costs
Subject to prior sale

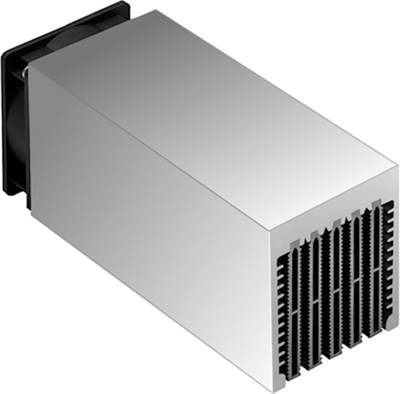

Hollow-fin heatsinks, fan cooled, type Fischer LA 9.
Without primary chamber, hollow fin geometry with optimized flow, with ebm-papst fan. Heatsink lenght: 150 mm.
With 24 VDC fan.

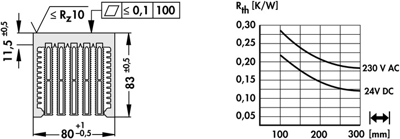

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 80 mm | |
| Type of bearing | ball bearing | |
| Rated voltage | 24 V | |
| max. operating temperature | 75 °C | |
| Sound pressure level | 48 db | |
| Height | 32 mm | |
| Width | 80 mm | |
| min. operating temperature | -20 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84145995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
