10025294 | Fischer Elektronik

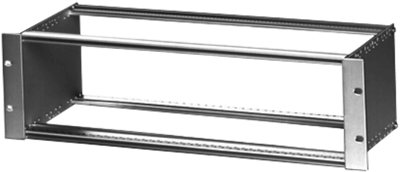

Subrack, anodized, die-cast aluminum, 84 HP, 10025294

Order No.: 71H200
EAN: 4099889574746
MPN:
10025294
BGT 384 240
Series: BGT
10025294 Fischer Elektronik Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
74.2679 € *
Next delivery: 2 pcs. on 2025-10-21
Total Price:
74.27 € *
Price list
Quantity
Price per unit*
1 pcs.
74.2679 €
5 pcs.
69.7935 €
15 pcs.
67.1279 €
50 pcs.
64.1648 €
150 pcs.
61.4873 €
*incl. VAT plus shipping costs
Subject to prior sale

Universal subrack, 10025294, Fischer Elektronik

Side panels made of 2.0 mm anodized aluminum sheet. Module rails made of extruded and anodized aluminum. For 100 x 160 mm Eurocards and connectors DIN 41617/31-pole and DIN 41612/32-pole, 48-pole, 64-pole and 96-pole with designs B, C etc., and to MiL C 21097 with 102.4 mm mounting hole pitch; Depth of metal side panels: 211 mm. Version: 3U, 84 HP (1U is 44.45 mm/1 HP is 5.08 mm). The module rails are numbered and have a continuous perforation with 5.08 mm grid. Side panels with press-in locking cam for easy parallel mounting of the front and rear module rails. The basic unit consists of 2 numbered module rails per front and rear, 2 side panels and 8 screws with spring lock washers. Accessories are available on separate order.

Type: BGT 384/240, subrack 3U

Technical specifications
Filter Property Value
Material die-cast aluminum
Version anodized
cutting pitch differential 84 HP
Product type subrack
Logistics
Property Value
Country of origin DE
Customs tariff number 76169990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
