12.91.8.230.0090 | Finder
12.91.8.230.0090, Timer for series installation, Astro program, daily and weekly program, 1 changeov
Order No.: 34G1669
EAN: 8012823348360
MPN:
12.91.8.230.0090
129182300090
Unit Price (€ / pc.)
153.4862 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
153.49 € *
Price list
Quantity
Price per unit*
1 pcs.
153.4862 €
2 pcs.
149.5473 €
*incl. VAT plus shipping costs
Subject to prior sale

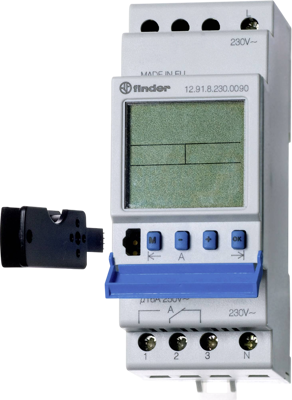

Electronic time switch, 12.91.8.230.0090, Finder
Electronic astronomical time switch for DIN rail, 1 changeover contact for 16 A, contact material AgSnO2, max. Switching capacity at 230 V AC: AC1 4000 VA, AC15 750 VA, lamp loads: Incandescent and halogen lamps 2000 W, energy-saving lamps 400 W, LED (230 V AC) 400 W, LV halogen lamps or LED with ECG 400 W, LV halogen lamps or LED with CCG 800 W, fluorescent lamps with ECG 1000 W, fluorescent lamps with CCG 750 W, daily and weekly program with 6-year power reserve, automatic su mmer/winter time changeover, with astronomical data for sunrise and sunset, 30 memory locations, connection voltage: 230 V AC, 35 mm wide. Progra mming with USB key via PC possible.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 4000 VA | |
| Display | Yes | |
| Rated voltage | 250 V | |
| Number of channels | 1 | |
| Assembly | DIN rail | |
| Version | time switch | |
| Function | daily/weekly program |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 91070000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
