12.71.8.230.0000 | Finder
Timer, 12.71.8.230.0000
Unit Price (€ / pc.)
102.8041 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
102.80 € *
Price list
Quantity
Price per unit*
1 pcs.
102.8041 €
3 pcs.
99.7220 €
10 pcs.
96.2710 €
25 pcs.
93.7125 €
100 pcs.
89.6070 €
*incl. VAT plus shipping costs
Subject to prior sale

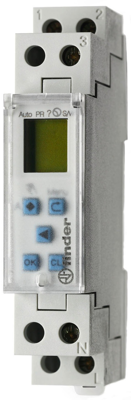

Timers, type Finder 12.71.
For 35 mm rails, programming manually or by means of PC using a plug-in operator panel, weekly program, default automatic daylight saving time; Contact: 1 x CO. Operating voltage: 230 VAC. Max. continuous current/inrush current: 16/30 A. Max. switching voltage: 250 VAC. Breaking capacity AC1/AC15: 4000/420 VA. Power reserve: 6 years. Memories: 30. Pulse activation time: 1.0 to 59 s. Deviation: 1.5 s/day. Ambient temperature: –10 to +55 °C. Degree of protection IP 20. Certifications: CE, GOST.
Type: 12.71, timer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | time switch | |
| Number of channels | 1 | |
| Function | weekly program | |
| Assembly | DIN rail | |
| Display | Yes | |
| Rated voltage | 230 V | |
| Breaking capacity | 4000 VA | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 91070000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
