12.21.8.230.0000 | Finder

Installations-programmable time switches

Order No.: 06N8549
EAN: 8012823123981
MPN:
12.21.8.230.0000
122182300000
Series: 12

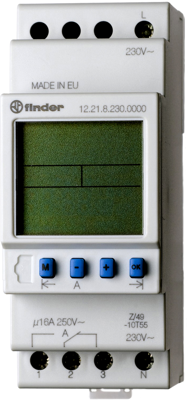

12.21.8.230.0000 Finder Time Switches and Twilight Switches
Image may differ
Unit Price (€ / pc.)
103.8394 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
103.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
103.8394 €

Installation timers, type Finder Serie 12.

For 35-mm rails. With 1 x CO contact; Continuous current: 16 A, inrush current: 30 A. Rated voltage: 250 VAC, breaking capacity AC 1 max.: 4000 VA, breaking capacity AC 15 (230 V): 750 VA. Contact load: filament lamps 230 V/2000 W, compensated fluorescent lamps 230 V/750 W. Minimum switching load: 1000 mW (10 V/10 mA). Contacts: AgSnO2. Rated voltage 230 VAC, working range from 0.85 to 1.1-fold. Useful life: 50 x 10^3 electrical switching cycles. Test voltage at open contact: 1000 VAC. Timer accuracy at +20 °C: ±1.5 s/day. Operating temperatures: –5.0 to +50 °C. Degree of protection: IP 20.

Programmable timers, type 12.21.

Electronic, quartz-controlled; Functions: daily and weekly program with summer and winter time conversion, power reserve of 6 years. Switching interval: shortest possible 1.0 min. Other features as described above.

Type: 12.21, programmable timer

Technical specifications
Filter Property Value
Version time switch
Number of channels 1
Function daily/weekly program
Assembly DIN rail
Display Yes
Rated voltage 230 V
Breaking capacity 4000 VA
Degree of protection (IP) IP20
Logistics
Property Value
Country of origin DE
Customs tariff number 91070000
Compliance
Property Value
Substance description Cadmium oxide
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
