830202400003 | Finder
Multifunction time relay, 0.05 s to 10 days, 7 functions, 2 Form C (NO/NC), 24-240 V AC/DC, 10 A/400 VAC, 830202400003
Order No.: 34G2979
EAN: 8012823438122
MPN:
830202400003
83.02.0.240.0003
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
141.7766 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
141.78 € *
Price list
Quantity
Price per unit*
1 pcs.
141.7766 €
2 pcs.
138.1471 €
3 pcs.
134.6961 €
*incl. VAT plus shipping costs
Subject to prior sale

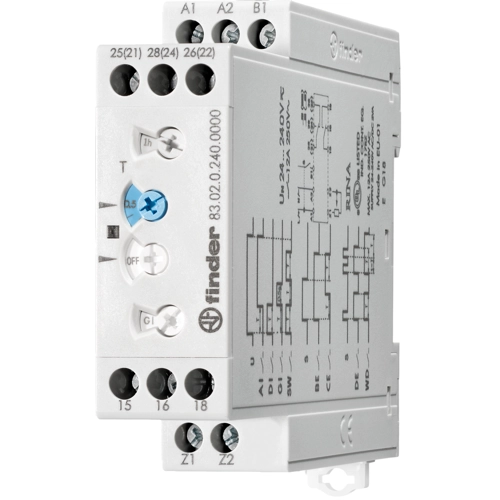

Modular timer, 830202400003, Finder
Modular timer, 22.5 mm wide, multi-voltage, multi-function with 2 delayed contacts or 1 delayed contact + 1 instantaneous contact. Possible to adjust timing via an external potentiometer.
Features
- Eight time scales from 0.05 s to 10 days
- High input/output insulation
- Blade + cross casing with regulator, function rotary switches and time scales, 35 mm rail clip that can be operated with both slotted and cross-head screwdrivers
- New multi-voltage versions with “PWM clever” technology
Applicatiions
- Panels for electrical distribution
- Automatic car-washes
- Packaging machines
- Pump control
- Industrial refrigerators
- Fountains
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Time display | 0.05 s to 10 days | |
| Function | 7 functions | |
| Contact type | 2 Form C (NO/NC) | |
| Voltage | 24-240 V AC/DC | |
| Breaking capacity | 10 A/400 VAC | |
| Connection | clamp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
