83.41.0.240.0000 | Finder
Time relay, 0.05 s to 10 days, release delay via start contact, 1 Form C (NO/NC), 24-240 V AC/DC, 16 A/250 VAC, 83.41.0.240.0000
Order No.: 34G1538
EAN: 8012823328010
MPN:
83.41.0.240.0000
834102400000
Unit Price (€ / pc.)
49.4326 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
49.43 € *
Price list
Quantity
Price per unit*
1 pcs.
49.4326 €
3 pcs.
47.4572 €
5 pcs.
45.6365 €
*incl. VAT plus shipping costs
Subject to prior sale

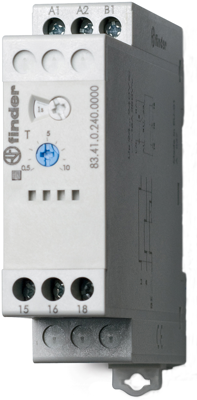

Modular timer, 83.41.0.240.0000, Finder
Modular timer, 22.5mm wide, multi-voltage and single BE function (Off-delay with control signal). Features include: - Eight time scales from 0.05 s to 10 days - High input/output insulation - Wide power supply range (24- 240) V AC/DC - “Blade + cross”: Both flat blade and cross-head screwdrivers can be used to adjust the range and function selectors, the timing trimmer, and to disengage the 35 mm rail clip - Multi-voltage versions with “PWM clever” technology - Compliant with EN 45545-2: 2013 (fire and smoke protection), EN 61373 (impact and vibration resistance, category 1, class B), EN 50155 (resistance to temperature and humidity, class T1).
Applications
- Panels for electrical distribution
- Automatic car-washes
- Packaging machines
- Pump control
- Industrial refrigerators
- Fountains
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Time display | 0.05 s to 10 days | |
| Function | release delay via start contact | |
| Contact type | 1 Form C (NO/NC) | |
| Voltage | 24-240 V AC/DC | |
| Breaking capacity | 16 A/250 VAC | |
| Connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
