77.E2.9.024.8671 | Finder
Solid state relay, momentary switching, 600 VAC, 75 A, panel mounting, 77.E2.9.024.8671
Order No.: 34G2185
EAN: 8012823450629
MPN:
77.E2.9.024.8671
77E290248671
Unit Price (€ / pc.)
97.2230 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
97.22 € *
Price list
Quantity
Price per unit*
1 pcs.
97.2230 €
2 pcs.
94.7359 €
3 pcs.
92.3678 €
*incl. VAT plus shipping costs
Subject to prior sale

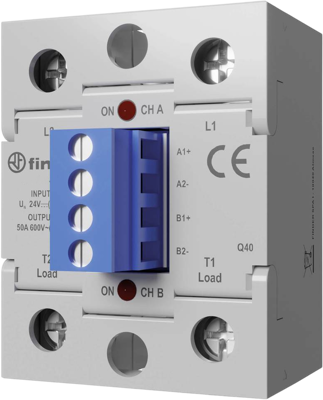

Solid State Relay, 77.E2.9.024.8671, Finder
Two-pole SSR relay, field hockey puck design, mounting on switch cabinet panel or on heat sink. Input voltage 24 V DC, 2 NO contacts for 75 A, inrush current up to 750 A for 10 ms, switching load voltage range 24 to 660 V AC, instantaneous value switch, 2 independent outputs controlled by different inputs, thermal power at In: 180 W, periodic peak blocking voltage: 1200 Vpk, residual current in “OFF” state at rated voltage: 5 mA. Dielectric strength input to output 4 kV. Ambient temperature: -30 to +80 °C, relay protection class: IP 20. Version: with LED. Dimensions: Length= 58.4 mm, width= 45.7 mm, height= 46 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | panel mounting | |
| Voltage | 600 VAC | |
| Switching Mode | momentary switching | |
| LED display | Yes | |
| Rated current | 75 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
