07.98.01 | Finder

Control cabinet outlet, yellow, 16 A/250 V, Germany, IP20, 07.98.01

Order No.: 06N6688
EAN: 8012823391618
MPN:
07.98.01
079801
Series: 07

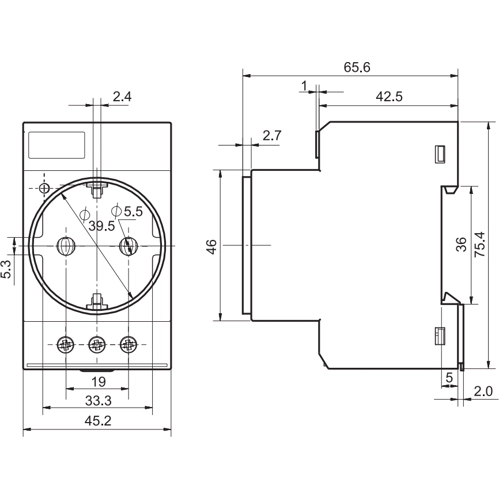

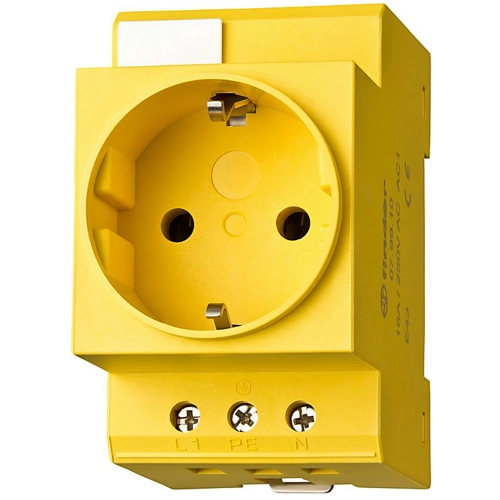

07.98.01 Finder Sockets, Device Sockets Image 1
07.98.01 Finder Sockets, Device Sockets Image 2
Image may differ

Not suitable for new designs - Last time buy manufacturer: 06.30.2024

Unit Price (€ / pc.)
4.6886 € *
Available: 79 pcs.
Total Price:
4.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.6886 €

Control cabinet power outlet, 07.98.01, Finder

With labeling shields, power connection via screw terminals; Rated voltage: 250 VAC. Rated current: 16 A. Contact material: CuZn37. Housing material: PA 66 (UL 94 V-0). Degree of protection: IP 20. Safety class: II. Ambient temperatures:-20 to +60 °C.

For installation upstream of the main switch, type 07.

Technical specifications
Version control cabinet outlet
Country code Germany
Colour yellow
Connection screw connection
Nominal power 16 A/250 V
Degree of protection (IP) IP20
Hinged cover available No
Child safety lock available No
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
