7S.36.9.024.5420 | Finder

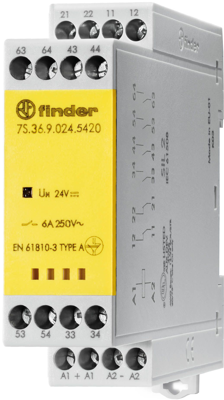

Relay module, 4 Form A (N/O) + 2 Form B (N/C), 7S.36.9.024.5420
Order No.: 34G1468
EAN: 8012823421032
MPN:
7S.36.9.024.5420
7S3690245420
Unit Price (€ / pc.)
86.7986 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
86.80 € *
Price list
Quantity
Price per unit*
1 pcs.
86.7986 €
2 pcs.
84.5733 €
3 pcs.
82.4551 €
*incl. VAT plus shipping costs
Subject to prior sale
Modular relay, 7S.36.9.024.5420, Finder
Relay modules with forcibly guided contacts, 6 contacts (4 NO + 2 NC and 5 NO + 1 NC). Suited for railway applications. Features include: - Relay with guided contacts Type A according to EN 61810-3 (ex EN 50205) for safety applications - For the functional safety of machines and systems according to EN 13849-1 - For railway applications; plastic materials compliant with fire and smoke specifications according to EN 45545; mechanical and climatic characteristics according to EN 61373 and EN 50155 - Versions for DC and AC power supplies - 24 and 110 V DC versions with extended operating range (0.7- 1.25) UN - Indication LED - 35 mm rail (EN 60715) mounting
Features
- Relay with guided contacts Type A according to EN 61810-3 (ex EN 50205) for safety applications
- For the functional safety of machines and systems according to EN 13849-1
- For railway applications; plastic materials compliant with fire and smoke specifications according to EN 45545; mechanical and climatic characteristics according to EN 61373 and EN 50155
Applications
- Chemical and petrolchemical
- Hoists and cranes
- Wood-processing machines
- Carousel warehouses
- Elevators and lifts
- Process Industry
- Automatic car-washes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 22.5 mm | |
| Contact type | 4 Form A (N/O) + 2 Form B (N/C) | |
| Assembly | DIN rail | |
| Version | relay module | |
| Height | 86.2 mm | |
| Depth | 96 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
