7S.34.9.024.4220 | Finder

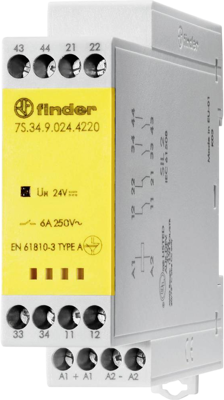

Relay module, 2 Form A (N/O) + 2 Form B (N/C), 7S.34.9.024.4220
Order No.: 34G1679
EAN: 8012823420639
MPN:
7S.34.9.024.4220
7S3490244220
Unit Price (€ / pc.)
84.5733 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
84.57 € *
Price list
Quantity
Price per unit*
1 pcs.
84.5733 €
2 pcs.
82.4075 €
3 pcs.
80.3369 €
*incl. VAT plus shipping costs
Subject to prior sale
Modular relay, 7S.34.9.024.4220, Finder
Relay Modules with forcibly guided contacts, 4 contacts: (2 NO + 2 NC) type 7S.xxxxx.4220 (3 NO + 1 NC) type 7S.xxxxx.4310 Features include: - Relays with guided contacts Type A according to EN 61810-3 (ex EN 50205) for applications of safety - For the functional safety of machines and systems according to EN 13849-1 - For railway applications; plastic materials compliant with fire and smoke specifications according to EN 45545; mechanical and climatic characteristics according to EN 61373 and EN 50155 - Versions with DC and AC power supply - 24 and 110 V DC versions with extended operating range (0.7… 1.25) UN - Indication LED.
Features
- Relays with guided contacts Type A according to EN 61810-3 (ex EN 50205) for applications of safety
- For the functional safety of machines and systems according to EN 13849-1
- Indication LED
Applications
- Chemical and petrolchemical
- Hoists and cranes
- Wood-processing machines
- Carousel warehouses
- Escalators
- Elevators and lifts
- Process Industry
- Automatic car-washes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | DIN rail | |
| Height | 86.2 mm | |
| Depth | 103.3 mm | |
| Width | 22.5 mm | |
| Type of Use | for security applications | |
| Contact type | 2 Form A (N/O) + 2 Form B (N/C) | |
| Version | relay module |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
