7F.70.9.024.4230 | Finder

Name: EMC fan, 24 V, 250 x 250 x 118.5 mm, 230 m³/h, 53 dB, ball bearing, Finder 7F.70.9.024.4230
Brand: Finder
SKU: 34G2903
Availability: InStock

EMC fan, 24 V, 250 x 250 x 118.5 mm, 230 m³/h, 53 dB, ball bearing, Finder 7F.70.9.024.4230

Order No.: 34G2903

EAN: 8012823367323

MPN:

7F.70.9.024.4230

7F7090244230

Image may differ

Key Specification:

Rated voltage 24 V

Width 250 mm

Height 250 mm

Depth 118.5 mm

Volume flow 230 m³/h

Show variants: 2

Download Datasheet Technical specifications

Unit Price (€ / pc.)

422.5571 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

422.56 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

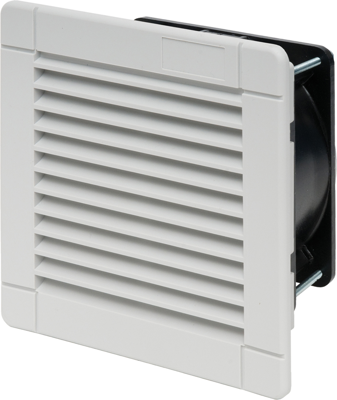

Filter Fan, 7F.70.9.024.4230, Finder

EMC filter fan for switch cabinet, air flow rate 230 m3/h, operating voltage 24 V DC, operating current 1.08 A, rated power 26 W, mounting cut-out 224 x 224, protection class IP 54, ambient temperature -10 - 70 degrees C.

Technical specifications

Filter	Property	Value
	Width	250 mm
	Volume flow	230 m³/h
	Degree of protection (IP)	IP54
	Type of bearing	ball bearing
	Rated voltage	24 V
	Height	250 mm
	Sound pressure level	53 db
	Depth	118.5 mm
