7F.70.9.024.2055 | Finder

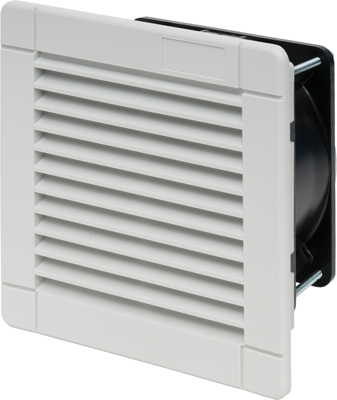

EMC fan, 24 V, 150 x 150 x 76.5 mm, 55 m³/h, 43 dB, ball bearing, Finder 7F.70.9.024.2055
Order No.: 34G2900
EAN: 8012823367309
MPN:
7F.70.9.024.2055
7F7090242055
Unit Price (€ / pc.)
199.7534 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
199.75 € *
Price list
Quantity
Price per unit*
1 pcs.
199.7534 €
2 pcs.
194.8863 €
*incl. VAT plus shipping costs
Subject to prior sale
Filter Fan, 7F.70.9.024.2055, Finder
EMC filter fan for switch cabinet, air flow rate 55 m3/h, operating voltage 24 V DC, operating current 370 mA, rated power 9 W, mounting cut-out 125 x 125, protection class IP 54, ambient temperature -10 - 70 degrees C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP54 | |
| Volume flow | 55 m³/h | |
| Rated voltage | 24 V | |
| Type of bearing | ball bearing | |
| Width | 150 mm | |
| Height | 150 mm | |
| Depth | 76.5 mm | |
| Sound pressure level | 43 db |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84146000 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
