7F.70.8.230.4230 | Finder

Name: EMC fan, 230 V, 250 x 250 x 118.5 mm, 230 m³/h, 53 dB, ball bearing, Finder 7F.70.8.230.4230
Brand: Finder
SKU: 34G2904
Availability: InStock

EMC fan, 230 V, 250 x 250 x 118.5 mm, 230 m³/h, 53 dB, ball bearing, Finder 7F.70.8.230.4230

Order No.: 34G2904

EAN: 8012823367262

MPN:

7F.70.8.230.4230

7F7082304230

Image may differ

Key Specification:

Rated voltage 230 V

Width 250 mm

Height 250 mm

Depth 118.5 mm

Volume flow 230 m³/h

Show variants: 2

Download Datasheet Technical specifications

Unit Price (€ / pc.)

357.1547 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

357.15 € *

Price list

Quantity

Price per unit*

1 pcs.

357.1547 €

2 pcs.

348.7533 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

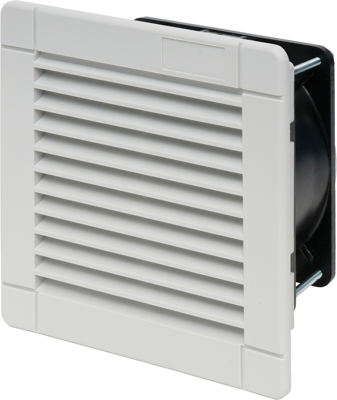

Filter Fan, 7F.70.8.230.4230, Finder

EMC filter fan for switch cabinet, air flow rate 230 m3/h, operating voltage 230 V, operating current 170 mA, rated power 40 W, mounting cut-out 224 x 224, protection class IP 54, ambient temperature -10 - 70 degrees C.

Technical specifications

Filter	Property	Value
	Width	250 mm
	Volume flow	230 m³/h
	Degree of protection (IP)	IP54
	Type of bearing	ball bearing
	Rated voltage	230 V
	Height	250 mm
	Sound pressure level	53 db
	Depth	118.5 mm
