7F.21.9.024.2055 | Finder
Control cabinet fan, 24 V, 155 x 155 x 66.2 mm, 55 m³/h, 46 dB, ball bearing, Finder 7F.21.9.024.2055
Order No.: 34G2276
EAN: 8012823425719
MPN:
7F.21.9.024.2055
7F2190242055
Unit Price (€ / pc.)
93.4745 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
93.47 € *
Price list
Quantity
Price per unit*
1 pcs.
93.4745 €
2 pcs.
91.0707 €
3 pcs.
88.7978 €
*incl. VAT plus shipping costs
Subject to prior sale

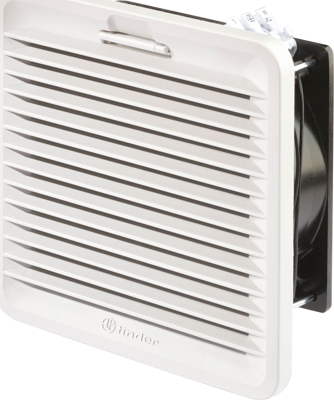

Filter Fan, 7F.21.9.024.2055, Finder
Reverse flow Filter Fan - for indoor use - for electric panels. Available in several sizes and with different air flow rates, AC and DC depending on the code.
Applications
- Drying kilns
- Textile machines
- Machines for paper processing
- Machines for ceramics
- Wood-processing machines
- Panels for electrical distribution
- Control panels
- Forced-air ventilators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 155 mm | |
| Type of bearing | ball bearing | |
| Degree of protection (IP) | IP54 | |
| Rated voltage | 24 V | |
| Depth | 66.2 mm | |
| Width | 155 mm | |
| Sound pressure level | 46 db | |
| Volume flow | 55 m³/h |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 84146000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
