7P.04.8.255.Z007C08 | Finder

Surge Protection Device, 7P.04.8.255.Z007C08, Finder

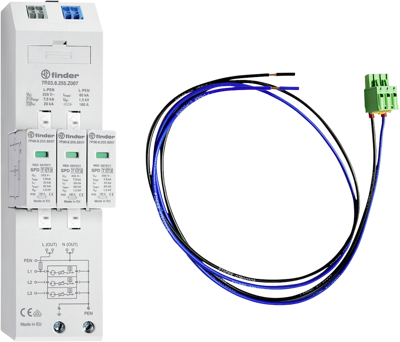

Lightning and surge arrester type 1+2 for 40 mm busbar, 7.5 kA per path, 5-conductor system, L1, L2, L3, N, PE, replaceable modules, visual fault indicator, holding system for the modules, can be used for discharging lightning currents up to 7, 5 kA per pole, installation in the pre-metering area at the interface of zones LPZ 0 to LPZ 1, without leakage current and follow current, including overcurrent-protected 230 V power supply for RfZ / APZ in accordance with VDE-AR-N 4100 and suitable connection cable 07P. 000 .08 with a length of 800 mm, 2x1 mm2 and plug type BF05.

Features

• SPD suitable for low voltage systems for protection against overvoltages caused by direct discharges, induced and operating overvoltages
• To be installed on the border between zones LPZ 0 and LPZ 1
• Extremely low residual voltage
• Replaceable modules
• Visual indicator of the varistor status: functional/to be replaced
• Double screw terminal
• Signaling with remote contact of the varistor status: presence, functioning, to be replaced

Applications

• Panels for electrical distribution
• Control panels
• Surge protection
• Road / tunnel lighting
• Elevators and lifts
