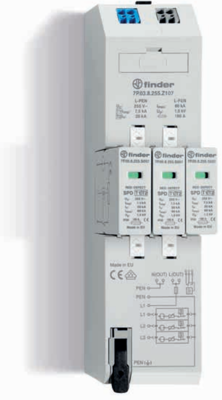

Surge arrester, 7P.03.8.255.Z012, Finder

Surge arrester, suitable for low-voltage installations, for protecting equipment against overvoltages caused by direct lightning strikes, induced overvoltages and switching overvoltages. SPD type 1 + 2 surge arresters for quick mounting on the busbar, for 3-phase low-voltage systems (230/400 V), without leakage current and without follow current. Including overcurrent protected 230 V power supply for APZ and RFZ according to DIN VDE AR-4100.

Features

• For installation at the boundaries of zones LPZ 0 to LPZ 1 or higher
• Quick mounting on 40 mm busbars
• Combination of high energy varistor block and high power spark gap (GDT)
• No leakage current
• Galvanic isolation between phases
• Very low residual voltage
• Exchangeable modules with holding system
• Varistor defect indication by "red" in the window
• Combination of 3 varistors and encapsulated spark gap
• Double voltage tap (fine-wire fuse 6.3 A)
• Signaling via viewing window
