18.01.8.230.0000 | Finder

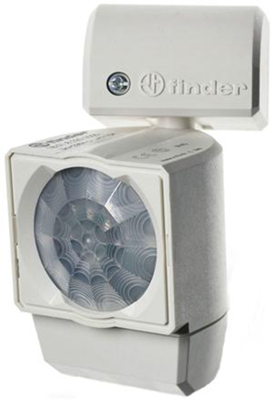

Motion detector, 230 VAC, 18.01.8.230.0000
Unit Price (€ / pc.)
35.0455 € *
Standard delivery time from the manufacturer is: 1 Week
Motion detectors, type Finder 18.01/18.11.
Detects object movements only based on body heat (people, animals); Rated voltage: 230 V, max. continuous current/maximum inrush current: 10/20 A, max. breaking capacity AC1/AC15: 2300/450 VA, permitted contact load glow lamps/ fluorescent lamps compensated/fluorescent lamps non-compensated/halogen lamps: 1000/350/500/1000 W, adjustable brightness threshold: 5.0 to 350 Lux, adjustable cut-off time: 10 s to 12 min, detection angle: 110 °, detection depth: 10 m.
Motion detectors for indoor applications, type 18.01.
Degree of protection: IP 40. Ambient temperature: –10 to +50 °C.
Type: 18.01 motion detector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Detecting distance | 10 m | |
| Assembly | wall mounting | |
| Version | Form A (N/O) | |
| Product type | motion detector | |
| Voltage | 230 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
