72.42.0.024.0000 | Finder
Pump changeover relay, 2 Form A (N/O), 24 V (DC), 24 V (AC), 12 A, 400 V (AC), 72.42.0.024.0000
Order No.: 34G1441
EAN: 8012823362731
MPN:
72.42.0.024.0000
724200240000
Unit Price (€ / pc.)
61.1422 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
61.14 € *
Price list
Quantity
Price per unit*
1 pcs.
61.1422 €
2 pcs.
58.7027 €
3 pcs.
56.4417 €
*incl. VAT plus shipping costs
Subject to prior sale

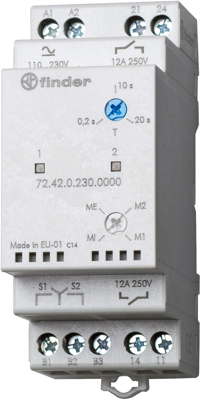

Monitoring relay, 72.42.0.024.0000, Finder
Control relay for alternating loads such as with pumps, compressors, air conditioning and refrigeration units, so as to share the duty and standby function and thereby even-out the wear across the equipment. It is a Multi-function relay (4 MI, ME, M2, M1 functions) with 2 independent NO contacts, 12 A outputs, 2 start inputs, isolated from the power supply.
Applications
- Industrial washing machines
- Swimming pools
- Control and management of water
- Bottling plant
- Milk processing plant
- Control panels for pumps
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (AC) | 24 V | |
| Connection | screw connection | |
| Contact material | AgNi | |
| switching current | 12 A | |
| Coil voltage (DC) | 24 V | |
| Switching Voltage (AC) | 400 V | |
| Contact type | 2 Form A (N/O) | |
| Breaking capacity | 3000 VA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85363010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
