70.51.0.240.2032 | Finder
Current guard, 1 Form C (NO/NC), 10 A, 250 V (AC), 70.51.0.240.2032
Unit Price (€ / pc.)
149.4283 € *
Available: 1 pcs.
Leadtime: 5 Weeks **
Total Price:
149.43 € *
Price list
Quantity
Price per unit*
1 pcs.
149.4283 €
3 pcs.
144.9420 €
10 pcs.
139.9559 €
25 pcs.
136.2193 €
*incl. VAT plus shipping costs
**Subject to prior sale

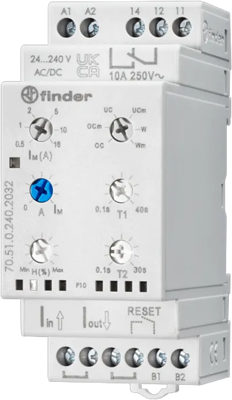

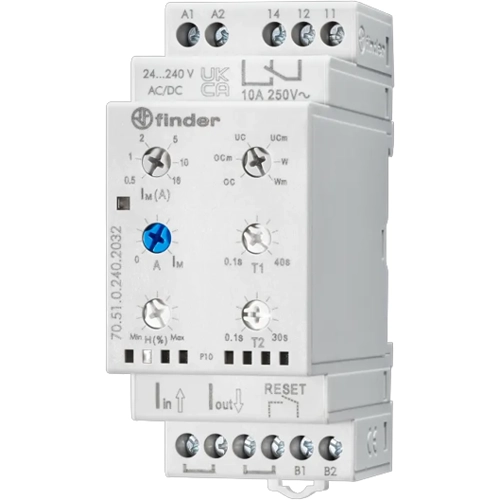

Monitoring relay, 70.51.0.240.2032, Finder
The multifunctional current monitoring relay provides the flexibility of monitoring undercurrent, overcurrent and window mode, up to 16 A directly.
Features
- Positive safety logic - Make output contact opens if the relay detects an error
- All functions and values can be easily adjusted by the selector and trimmer on front face
- 6 functions universal current monitoring relay
- AC/DC current detection 50 mA - 16 A
- “Blade + cross” – both flat blade and cross head screw drivers can be used to adjust the regulators and the function selector
- Colored LED for clear & immediate visual indication
- Fault memory selectable
- 1 CO 10 A relay output
- Switch-on hysteresis (5 - 50%) (1 - 99% in Window Mode)
- Modular housing, 35 mm wide
Technical specifications
| Connection | screw connection | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgSnO2 | |
| Breaking capacity | 2500 VA | |
| Switching Voltage (AC) | 250 V | |
| switching current | 10 A |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85363010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
