7L.46.0.024.1100 | Finder
LED switch cabinet light, 9 W, 24 V, 1200 lm, 5000 K, 120°, 7L.46.0.024.1100
Unit Price (€ / pc.)
86.5725 € *
Available: 1 pcs.
Total Price:
86.57 € *
Price list
Quantity
Price per unit*
1 pcs.
86.5725 €
3 pcs.
83.9783 €
10 pcs.
81.0866 €
*incl. VAT plus shipping costs
Subject to prior sale

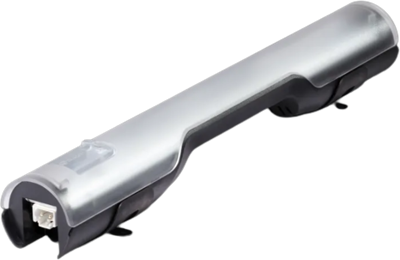

LED control cabinet light, 7L.46.0.024.1100, Finder
The LED panel light can be mounted anywhere in the control cabinet thanks to the direct magnetic mounting or screw-on metal clips. It emits a 5000 K cool white light with low power consumption and has a beam angle of 120°.
Features
- 1200 lumens, 9 W
- With ON/OFF switch
- Push-in terminals for single connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour temperature | 5000 K | |
| Degree of protection (IP) | IP20 | |
| Colour | transparent | |
| Version | LED light | |
| max. operating temperature | 55 °C | |
| Power | 9 W | |
| average nominal life | 60000 h | |
| Radiation angle | 120 ° | |
| Length | 310.6 mm | |
| Rated voltage | 24 V | |
| min. operating temperature | -30 °C | |
| Width | 46 mm | |
| Luminous flux | 1200 lm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85395200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
