7L.43.0.230.1200 | Finder

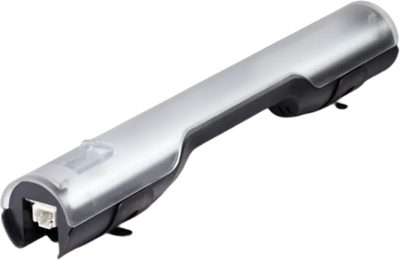

LED switch cabinet light, 6 W, 230 V, 600 lm, 5000 K, 120°, 7L.43.0.230.1200
As a private customer, you can buy this item as soon as we have it back in stock.
LED control cabinet light, 7L.43.0.230.1200, Finder
The LED panel light can be mounted anywhere in the control cabinet thanks to the direct magnetic mounting or screw-on metal clips. It emits a 5000 K cool white light with low power consumption and has a beam angle of 120°.
Features
- 600 lumens, 6 W
- With ON/OFF switch
- Plug-in terminals for the connection to a single or multiple units (up to 7 lamps)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 310.6 mm | |
| Luminous flux | 600 lm | |
| max. operating temperature | 55 °C | |
| Version | LED light | |
| Colour temperature | 5000 K | |
| Degree of protection (IP) | IP20 | |
| Rated voltage | 230 V | |
| Power | 6 W | |
| Radiation angle | 120 ° | |
| average nominal life | 60000 h | |
| min. operating temperature | -30 °C | |
| Width | 46 mm | |
| Colour | transparent |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85395200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
