7L.43.0.024.1100 | Finder
LED switch cabinet light, 6 W, 24 V, 600 lm, 5000 K, 120°, 7L.43.0.024.1100
Unit Price (€ / pc.)
79.4325 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
79.43 € *
Price list
Quantity
Price per unit*
1 pcs.
79.4325 €
5 pcs.
74.6606 €
15 pcs.
71.8046 €
*incl. VAT plus shipping costs
Subject to prior sale

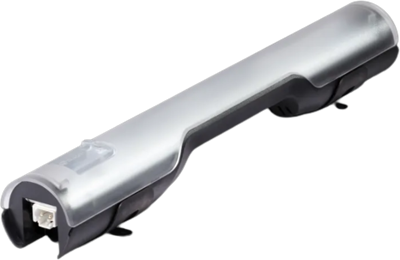

LED control cabinet light, 7L.43.0.024.1100, Finder
The LED panel light can be mounted anywhere in the control cabinet thanks to the direct magnetic mounting or screw-on metal clips. It emits a 5000 K cool white light with low power consumption and has a beam angle of 120°.
Features
- 600 lumens, 6 W
- With ON/OFF switch
- Push-in terminals for single connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Luminous flux | 600 lm | |
| Width | 46 mm | |
| Version | LED light | |
| Degree of protection (IP) | IP20 | |
| max. operating temperature | 55 °C | |
| average nominal life | 60000 h | |
| Length | 310.6 mm | |
| Power | 6 W | |
| Radiation angle | 120 ° | |
| Colour temperature | 5000 K | |
| min. operating temperature | -30 °C | |
| Colour | transparent | |
| Rated voltage | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85395200 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
