56.34.8.230.4040 | Finder
Relay, 4 Form C (NO/NC), 230 V (AC), 7.7 kΩ, 12 A, 400 V (AC), monostable, 56.34.8.230.4040
Order No.: 34G1415
EAN: 8012823331690
MPN:
56.34.8.230.4040
563482304040
Unit Price (€ / pc.)
25.8587 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
25.86 € *
Price list
Quantity
Price per unit*
1 pcs.
25.8587 €
5 pcs.
24.7282 €
10 pcs.
23.3716 €
20 pcs.
22.1578 €
*incl. VAT plus shipping costs
Subject to prior sale

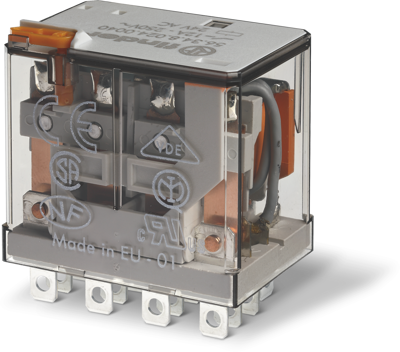

Miniature power relay, 56.34.8.230.4040, Finder
Miniature power relay 12 A with 4 pole changeover contacts for plug-in mount on 96 Series sockets. Flange mount option using adaptor, with 187 Faston, 4.8 x 0.5 mm connections AC or DC coil Lockable test button and mechanical indicator.
Features
- Lockable test button and mechanical indicator
- Cadmium-free contacts
Applications
- Industrial furnaces and ovens
- Control and management of electric power
- Industrial motors
- Circuit breakers and switches
- Panels for electrical distribution
- Control panels
- Carousel warehouses
- Vending machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (AC) | 230 V | |
| switching current | 12 A | |
| Contact type | 4 Form C (NO/NC) | |
| Grid | 10 mm | |
| Coil resistance | 7.7 kΩ | |
| Switching Voltage (AC) | 400 V | |
| Coil type | monostable | |
| Contact material | AgSnO2 | |
| Connection | plug-in connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
