553390240000 | Finder
Relay, 3 Form C (NO/NC), 24 V (DC), 600 Ω, 10 A, 400 V (AC), monostable, 553390240000
Unit Price (€ / pc.)
11.1027 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
11.10 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1027 €
5 pcs.
10.6029 €
10 pcs.
10.1507 €
20 pcs.
9.6033 €
*incl. VAT plus shipping costs
Subject to prior sale

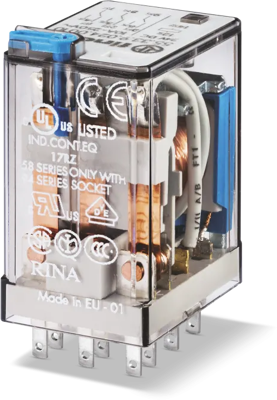

General purpose relay, 553390240000, Finder
The 553390240000 is a general purpose plug-in relay. 3 CO 10 A for use with 94 Series sockets.
Features
- Lockable test button and standard mechanical indicator on 2- and 4-contact Types
- Variant with LED and integrated protection circuit
- Cadmium-free contacts
- Contact material options
Applications
- Control and management of electric power
- Circuit breakers and switches
- Panels for electrical distribution
- Hoists and cranes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 3 Form C (NO/NC) | |
| switching current | 10 A | |
| Coil voltage (DC) | 24 V | |
| Coil resistance | 600 Ω | |
| Switching Voltage (AC) | 400 V | |
| Connection | plug-in connection | |
| Coil type | monostable | |
| Contact material | AgNi |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
