55.32.9.060.0060 | Finder
Relay, 2 Form C (NO/NC), 60 V (DC), 4 kΩ, 10 A, 400 V (AC), 55.32.9.060.0060
Not suitable for new designs
Unit Price (€ / pc.)
15.2082 € *
Standard delivery time from the manufacturer is: 1 Week

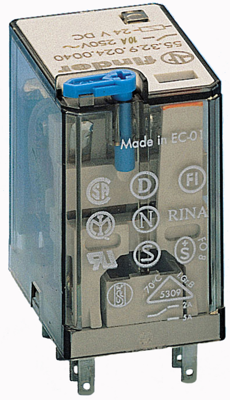

Plug-in relay, 55.32.9.060.0060, Finder
The 55.32.9.060.0060 is a plug-in relay with a 2 Form C. It consists of a set of input terminals for a single or multiple control signals and a set of operating contact terminals.
Features
- AC coils & DC coils
- Cadmium Free contacts
- Coil EMC suppression
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil voltage (DC) | 60 V | |
| switching current | 10 A | |
| Coil resistance | 4 kΩ | |
| Contact type | 2 Form C (NO/NC) | |
| Switching Voltage (AC) | 400 V | |
| Connection | plug-in connection | |
| Contact material | AgNi |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
