55.32.9.048.0040 | Finder

Relay, 2 Form C (NO/NC), 48 V (DC), 2.4 kΩ, 10 A, 400 V (AC), 55.32.9.048.0040

Order No.: 34G2460

EAN: 8012823081175

MPN:

55.32.9.048.0040

553290480040

Series: 55

Image may differ

Key Specification:

Contact type 2 Form C (NO/NC)

switching current 10 A

Coil voltage (DC) 48 V

Coil resistance 2.4 kΩ

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Relay, 2 Form C (NO/NC), 48 V (DC), 2.4 kΩ, 10 A, 400 V (AC), 55.32.9.048.0090

Order No.: 34G2461

Manufacturer: Finder

per pc. 14.1372 € *

Go to product

*incl. VAT plus shipping costs

Description

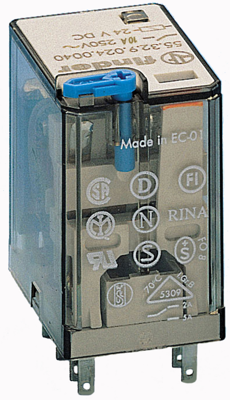

Plug-in relay, 55.32.9.048.0040, Finder

Miniature plug-in relay 2 CO for 10 A / 250 V AC, contact material AgNi, coil data: 48 V DC, 1 W, 2400 Ohm, blockable manual override and mechanical indication Relay protection type: RT I

Features

AC coils & DC coils
Cadmium Free contacts
Coil EMC suppression

Technical specifications

Filter	Property	Value
	Contact type	2 Form C (NO/NC)
	switching current	10 A
	Coil voltage (DC)	48 V
	Coil resistance	2.4 kΩ
	Switching Voltage (AC)	400 V
	Connection	plug-in connection
	Contact material	AgNi
