55.32.9.024.5000 | Finder

Relay, 2 Form C (NO/NC), 24 V (DC), 600 Ω, 10 A, 400 V (AC), 55.32.9.024.5000

Order No.: 34G2454

EAN: 8012823029269

MPN:

55.32.9.024.5000

553290245000

Series: 55

Image may differ

Key Specification:

Contact type 2 Form C (NO/NC)

switching current 10 A

Coil voltage (DC) 24 V

Coil resistance 600 Ω

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Relay, 2 Form C (NO/NC), 24 V (DC), 600 Ω, 10 A, 400 V (AC), 55.32.9.024.0000

Order No.: 34G2443

Manufacturer: Finder

per pc. 10.3887 € *

Go to product

*incl. VAT plus shipping costs

Description

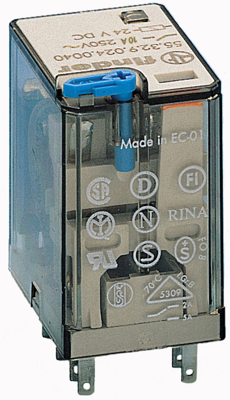

Plug-in relay, 55.32.9.024.5000, Finder

Miniature plug-in relay 2 CO for 10 A / 250 V AC, contact material AgNi-hard gold plated, coil data: 24 V DC, 1 W, 600 Ohm, relay protection type: RT I

Features

AC coils & DC coils
Cadmium Free contacts
Coil EMC suppression

Technical specifications

Filter	Property	Value
	Contact type	2 Form C (NO/NC)
	switching current	10 A
	Coil voltage (DC)	24 V
	Coil resistance	600 Ω
	Switching Voltage (AC)	400 V
	Connection	plug-in connection
	Contact material	AgNi + Au
