55.32.8.230.0000 | Finder

Relay, 2 Form C (NO/NC), 230 V (AC), 17 kΩ, 10 A, 400 V (AC), 55.32.8.230.0000

Order No.: 34G2429
EAN: 8012823248462
MPN:
55.32.8.230.0000
553282300000
Series: 55
Finder
55.32.8.230.0000 Finder Industrial Relays
Image may differ
Print
Key Specification:
Contact type 2 Form C (NO/NC)
switching current 10 A
Coil voltage (AC) 230 V
Coil resistance 17 kΩ
Download Datasheet Technical specifications
This item is no longer available.
As an alternative, we recommend the following item:
Relay, 2 Form C (NO/NC), 230 V (AC), 17 kΩ, 10 A, 400 V (AC), 55.32.8.230.0040
Relay, 2 Form C (NO/NC), 230 V (AC), 17 kΩ, 10 A, 400 V (AC), 55.32.8.230.0040
Order No.: 29G9839
Manufacturer: Finder
per pc. 9.9365 € *
Go to product
*incl. VAT plus shipping costs
Description
Technical specifications
Download
Logistics
Compliance
Replacement

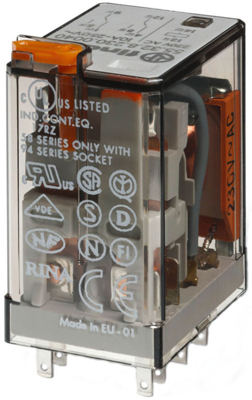

Plug-in relay, 55.32.8.230.0000, Finder

Miniature plug-in relay 2 CO for 10 A / 250 V AC, contact material AgNi, coil data: 230 V AC, 1.5 VA, 17000 Ohm, relay protection type: RT I

Features

  • AC coils & DC coils
  • Cadmium Free contacts
  • Coil EMC suppression
Technical specifications
Contact type 2 Form C (NO/NC)
switching current 10 A
Coil voltage (AC) 230 V
Coil resistance 17 kΩ
Switching Voltage (AC) 400 V
Connection plug-in connection
Contact material AgNi
Articles of same specification 0
Logistics
Original Packaging Carton with 10 pieces
Customs tariff number 85364900
Country of origin IT
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Replacement
