55.32.8.024.0054 | Finder

Relay, 2 Form C (NO/NC), 24 V (AC), 190 Ω, 10 A, 400 V (AC), 55.32.8.024.0054

Order No.: 34G2414

EAN: 8012823091761

MPN:

55.32.8.024.0054

553280240054

Series: 55

Image may differ

Key Specification:

Contact type 2 Form C (NO/NC)

switching current 10 A

Coil voltage (AC) 24 V

Coil resistance 190 Ω

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Relay, 2 Form C (NO/NC), 24 V (AC), 190 Ω, 10 A, 400 V (AC), 55.32.8.024.5050

Order No.: 34G2417

Manufacturer: Finder

per pc. 15.0654 € *

Go to product

*incl. VAT plus shipping costs

Description

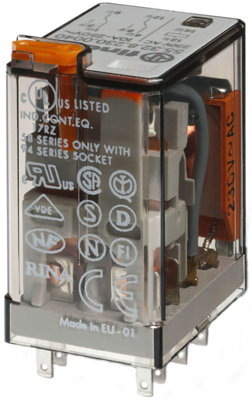

Plug-in relay, 55.32.8.024.0054, Finder

Miniature plug-in relay 2 CO for 10 A / 250 V AC, contact material AgNi, coil data: 24 V AC, 1.5 VA, 190 Ohm, lockable manual override and mechanical indicator and LED, relay protection type: RT I

Features

AC coils & DC coils
Cadmium Free contacts
Coil EMC suppression

Technical specifications

Filter	Property	Value
	Contact type	2 Form C (NO/NC)
	switching current	10 A
	Coil voltage (AC)	24 V
	Coil resistance	190 Ω
	Switching Voltage (AC)	400 V
	Connection	plug-in connection
	Contact material	AgNi
