55.14.8.230.5000 | Finder
Relay, 4 Form C (NO/NC), 230 V (AC), 17 kΩ, 7 A, 250 V (AC), 55.14.8.230.5000
Unit Price (€ / pc.)
18.8615 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
18.86 € *
Price list
Quantity
Price per unit*
1 pcs.
18.8615 €
5 pcs.
18.0404 €
10 pcs.
17.0527 €
20 pcs.
16.1602 €
*incl. VAT plus shipping costs
Subject to prior sale

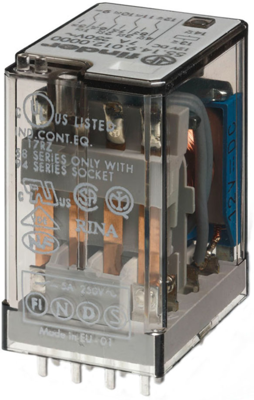

Print relay, 55.14.8.230.5000, Finder
Miniature print relay 4 CO for 7 A / 250 V AC, contact material AgNi-hard gold plated, coil data: 230 V AC, 1.5 VA, 17000 Ohm, relay protection type: RT I
Features
- AC coils & DC coils
- Cadmium Free contacts
- Contact material options
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 4 Form C (NO/NC) | |
| Contact material | AgNi + Au | |
| Coil voltage (AC) | 230 V | |
| Connection | PCB connection | |
| Grid | 4.4 mm | |
| Coil resistance | 17 kΩ | |
| switching current | 7 A | |
| Switching Voltage (AC) | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
