55.14.8.024.0000 | Finder
Relay, 4 Form C (NO/NC), 24 V (AC), 190 Ω, 7 A, 250 V (AC), 55.14.8.024.0000
Not suitable for new designs
Unit Price (€ / pc.)
10.4244 € *
Standard delivery time from the manufacturer is: 1 Week

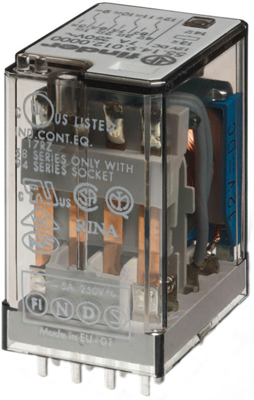

Print relay, 55.14.8.024.0000, Finder
Miniature print relay 4 CO for 7 A / 250 V AC, contact material AgNi, coil data: 24 V AC, 1.5 VA, 190 Ohm, relay protection type: RT I
Features
- AC coils & DC coils
- Cadmium Free contacts
- Contact material options
Technical specifications
| Filter | Property | Value |
|---|---|---|
| switching current | 7 A | |
| Coil resistance | 190 Ω | |
| Coil voltage (AC) | 24 V | |
| Contact type | 4 Form C (NO/NC) | |
| Grid | 4.4 mm | |
| Switching Voltage (AC) | 250 V | |
| Connection | PCB connection | |
| Contact material | AgNi |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Original Packaging | Carton with 10 pieces |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
