434170060300 | Finder
Relay, 1 Form A (N/O), 6 V (DC), 150 Ω, 10 A, 400 V (AC), 434170060300
Unit Price (€ / pc.)
4.7600 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7600 €
10 pcs.
4.5458 €
20 pcs.
4.3435 €
40 pcs.
4.0936 €
60 pcs.
3.8794 €
*incl. VAT plus shipping costs
Subject to prior sale

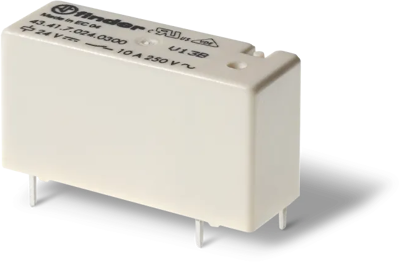

Low profile PCB relay, 434170060300, Finder
The 434170060300 is a low profile PCB relay, 1 NO, 10 A (3.2 mm pin pitch), for direct PCB mounting or with Type 95.23 PCB socket.
Features
- High insulation between coil and contacts 10 mm
- Cadmium-free contacts
Applications
- Medical and dentistry
- Burners, boilers and furnaces
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 400 V | |
| Contact type | 1 Form A (N/O) | |
| switching current | 10 A | |
| Grid | 5 mm | |
| Coil voltage (DC) | 6 V | |
| Connection | PCB connection | |
| Coil resistance | 150 Ω | |
| Contact material | AgNi |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
