41.52.8.230.4000 | Finder

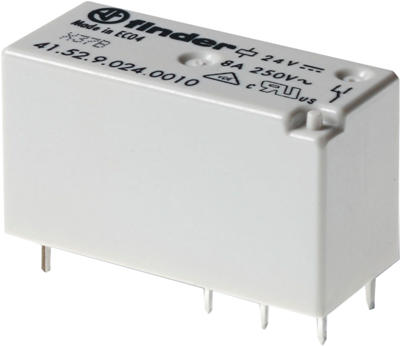

Relay, 2 Form C (NO/NC), 230 V (DC), 32.5 kΩ, 8 A, 400 V (AC), 41.52.8.230.4000

Order No.: 34G1986
EAN: 8012823305752
MPN:
41.52.8.230.4000
415282304000
Series: 41
Finder
41.52.8.230.4000 Finder Industrial Relays
Image may differ
Print
Key Specification:
Contact type 2 Form C (NO/NC)
switching current 8 A
Coil voltage (DC) 230 V
Coil resistance 32.5 kΩ
Download Datasheet Technical specifications
This item is no longer available.
As an alternative, we recommend the following item:

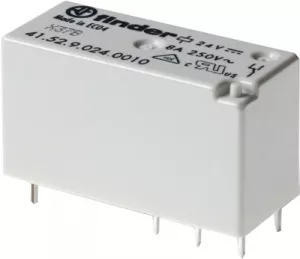

Relay, 2 Form C (NO/NC), 230 V (DC), 32.5 kΩ, 8 A, 400 V (AC), 41.52.8.230.0000
Relay, 2 Form C (NO/NC), 230 V (DC), 32.5 kΩ, 8 A, 400 V (AC), 41.52.8.230.0000
Order No.: 34G1985
Manufacturer: Finder
per pc. 9.0440 € *
Go to product
*incl. VAT plus shipping costs
Description
Technical specifications
Download
Logistics
Compliance
Replacement

Industrial relay, 41.52.8.230.4000, FINDER

Features

  • AC coil and DC coil
  • 6 kV insulation between coil and contacts
  • RT II fluxproof
  • Cadmium-free contacts

Applications

  • Electronic circuit boards
  • Medical and dentistry
  • Building automation
  • Control systems
Technical specifications
Contact type 2 Form C (NO/NC)
switching current 8 A
Coil voltage (DC) 230 V
Coil resistance 32.5 kΩ
Switching Voltage (AC) 400 V
Connection PCB connection
Grid 5 mm
Contact material AgNi
Articles of same specification 0
Logistics
Customs tariff number 85364900
Country of origin IT
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
