41.31.9.012.0020 | Finder
Relay, 1 Form C (NO/NC), 12 V (DC), 360 Ω, 12 A, 400 V (AC), monostable, 41.31.9.012.0020
Order No.: 34G2120
EAN: 8012823446523
MPN:
41.31.9.012.0020
413190120020
Unit Price (€ / pc.)
4.7600 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.76 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7600 €
10 pcs.
4.5458 €
20 pcs.
4.3435 €
40 pcs.
4.0936 €
60 pcs.
3.8794 €
*incl. VAT plus shipping costs
Subject to prior sale

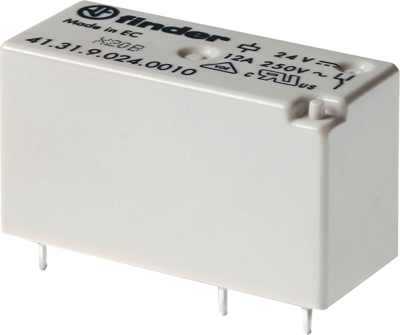

Low profile PCB relay, 41.31.9.012.0020, Finder
Low profile PCB relay 1 contact 12 A (3.5 mm pitch), suitable for mounting on PCB or 95 Series sockets. Equipped with AC or DC coil. 8 mm, 6 kV (1.2/50 μs) between coil and contacts. Cadmium-free contacts. Flux-proof: RT II standard, (also available in RT III version).
Features
- AC and DC coils
- Cadmium free contacts
Applications
- Air conditioners
- Automatic car-washes
- Alarm systems
- Back-up generators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form C (NO/NC) | |
| Coil voltage (DC) | 12 V | |
| Contact material | AgNi | |
| Connection | PCB connection | |
| Grid | 3.5 mm | |
| Coil resistance | 360 Ω | |
| switching current | 12 A | |
| Switching Voltage (AC) | 400 V | |
| Coil type | monostable |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
