40.61.6.024.4000 | Finder
Relay, 1 Form C (NO/NC), 24 V (DC), 24 V (AC), 520 Ω, 16 A, 400 V (AC), bistable, 40.61.6.024.4000
Order No.: 34G2100
EAN: 8012823113395
MPN:
40.61.6.024.4000
406160244000
Unit Price (€ / pc.)
11.4835 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
11.48 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4835 €
10 pcs.
10.9599 €
25 pcs.
10.4958 €
50 pcs.
9.9246 €
*incl. VAT plus shipping costs
Subject to prior sale

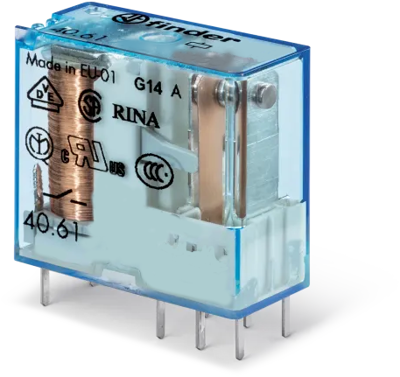

Miniature PCB Relay, 40.61.6.024.4000, Finder
Miniature PCB relay, 1 CO 16 A. PCB mount (5.0 mm pin pitch) or plug-in with 95 Series sockets, DC coils (650 mW or 500 mW) and AC coils. Variant with Cadmium-free contacts. 8 mm, 6 kV (1.2/50 µs) insulation between coil and contacts. Complies with the glow wire test according to EN 60335-1.
Features
- Pin length 3.5 mm for direct PCB mount
- Meets EN 60335-1 glow wire requirements
Applications
- Medical and dentistry
- Control panels
- Panels for electrical distribution
- Toys
- Automation for blinds, grilles and shutters
- Door and gate openers
- Electronic circuit boards
- Vending machines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form C (NO/NC) | |
| Coil voltage (DC) | 24 V | |
| Contact material | AgSnO2 | |
| Coil voltage (AC) | 24 V | |
| Connection | PCB connection | |
| Grid | 5 mm | |
| Coil resistance | 520 Ω | |
| switching current | 16 A | |
| Switching Voltage (AC) | 400 V | |
| Coil type | bistable |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
