40.31.8.120.5000 | Finder
Relay, 1 Form C (NO/NC), 120 V (AC), 9 kΩ, 10 A, 400 V (AC), monostable, 40.31.8.120.5000
This item is no longer available.
As an alternative, we recommend the following item:
Current-surge relay, 2 Form A (N/O), 10 A, 250 V, 26.08.8.012.0000
Order No.: 34G1610
Manufacturer: Finder
per pc. 14.1967 € *

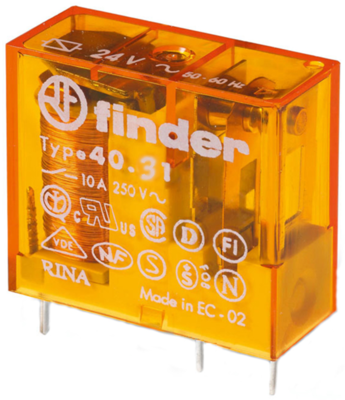

Power relay, 40.31.8.120.5000, FINDER
Features
- PCB mount
- RT II flux proof
- AC coil and DC coil
- 6 kV insulation between coil and contacts
- Coil indication and EMC suppression
Applications
- Medical and dentistry
- Control panels
- Panels for electrical distribution
- Automation for blinds, grilles and shutters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form C (NO/NC) | |
| switching current | 10 A | |
| Coil voltage (AC) | 120 V | |
| Coil resistance | 9 kΩ | |
| Switching Voltage (AC) | 400 V | |
| Connection | PCB connection | |
| Coil type | monostable | |
| Grid | 3.5 mm | |
| Contact material | AgNi + Au |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
