19.21.0.024.0000 | Finder

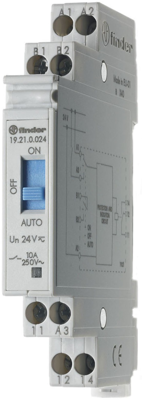

Digital intervention relay, 1 Form C (N/O N/C) + 1 Form A (N/O), 24 V (AC), 10 A, 400 V (AC), 19.21.0.024.0000
Unit Price (€ / pc.)
34.2363 € *
Standard delivery time from the manufacturer is: 1 Week
Digital Interventions-Relays: Auto-Off-On
Auto-Off-On relay, 1-stage, with feedback contact, width 11.2 mm, for automatic-off manual operation, for DIN rail, 1 change-over contact 10 A / 250 V AC (AC1), max. switching capacities at 230 V AC: AC1-2,500 VA, AC15-500 VA, rated voltage 24 V AC/DC
Intervention modules are used to detect faults in complex, electronic control systems, production plants or building management systems by the operator and to enable emergency operation through targeted intervention. The operating state "AUTO" can be reported to a control centre/control via output B1-B2.
Typical applications:
- Maintaining emergency operation in the event of disturbed automatic operation.
- Switching in emergency operation of heaters, pumps, air-conditioning systems, sprinkler systems, ventilation flaps, motors, fans, etc.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (AC) | 400 V | |
| Coil voltage (AC) | 24 V | |
| switching current | 10 A | |
| Connection | screw connection | |
| Contact type | 1 Form C (N/O N/C) + 1 Form A (N/O) | |
| Contact material | AgSnO2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
