19.6K.9.030.4300 | Finder
KNX switching actuator, 1 Form A (N/O) + 1 Form B (N/C), 16 A, 250 V, 19.6K.9.030.4300
Order No.: 34G1470
EAN: 8012823413488
MPN:
19.6K.9.030.4300
196K90304300
Unit Price (€ / pc.)
287.5992 € *
Standard delivery time from the manufacturer is: 1 Week

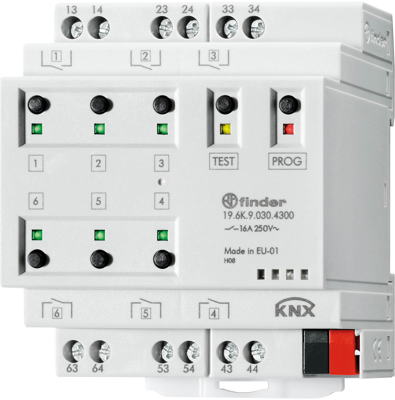

Switch actuator, 19.6K.9.030.4300, Finder
Compact and powerful actuator equipped with KNX technology, with 6 X 16 A individually configurable (as NO or NC) contacts. Equipped with ENEC approved bistable relays. Suitable for lamp loads. LED indicators for each output. Ideal for management of scenarios. Powered via KNX bus. Suitable for 35 mm rail (EN 60715) mounting.
Features
- Allows management of scenarios
- Power supply via KNX bus
Applications
- Panels for electrical distribution
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Rated voltage (AC) | 250 V | |
| Size | 88.8 x 70 x 60.8 mm | |
| Assembly | DIN rail | |
| Rated current | 16 A | |
| Dimmable | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
