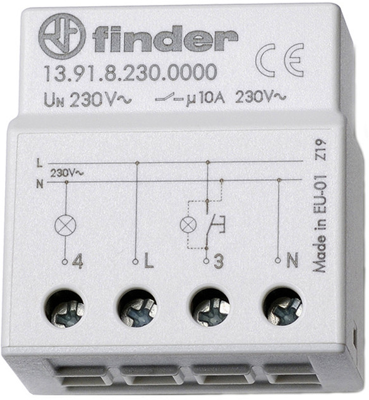

13.91.8.230.0000 | Finder
Pulse relays for quiet operation
Unit Price (€ / pc.)
28.441 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Pulse relays for quiet operation, type Finder Serie 13.
For mounting in residential switch boxes or flush boxes. Returns to home position after the control voltage is switched off; Contact: 1 x NO. Contact material: AgSnO2. Continuous current: max. 10 A. Inrush current: max. 20 A. Rated voltage: 230 VAC. Breaking capacity AC1/AC15 (230 VAC): max. 2000/450 VA. Contact load: incandescent bulbs (230 V): 800 W, fluorescent lamps with/without compensation (230 V) 300/400 W, halogen bulbs (230 V) 800 W. Switching load: min. 1000 mW (10 V/10 mA). Control pulse duration: 0.2 s. Degree of protection: IP 20. Ambient temperatures: –10 to +50 °C.
Type: 13.91.8.230.0000, pulse relay
Technical specifications
| Dimmable | No | |
| On Period | 100 % ED | |
| Size | 39 x 37 x 22.7 mm | |
| Lamp wattage | 2300 W | |
| Assembly | DIN rail | |
| Rated voltage (AC) | 230 V | |
| Rated current | 10 A | |
| Latching switching function | 1 Form A (N/O) |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
