78.50.1.230.1202 | Finder
Power supply, 12 to 14 VDC, 4.2 A, 50 W, 78.50.1.230.1202
Unit Price (€ / pc.)
102.5661 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
102.57 € *
Price list
Quantity
Price per unit*
1 pcs.
102.5661 €
5 pcs.
96.4138 €
15 pcs.
92.7129 €
50 pcs.
88.6193 €
*incl. VAT plus shipping costs
Subject to prior sale

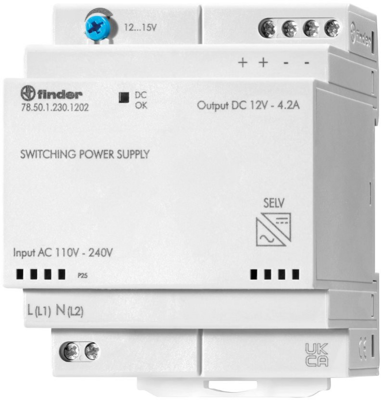

Switch mode power supply, 78.50.1.230.1202, Finder
Features
- Low stand-by power consumption
- Thermal protection: internal, with Vout shutdown - power OFF to reset
- Short circuit protection: Hiccup (auto-recovery) mode
- Overvoltage protection: Varistor
- Flyback topology
- Parallel working for automatic redundancy - with OR diodes
- 35 mm rail mount
- Integrated input fuse + output voltage adjustment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 4.2 A | |
| Degree of protection (IP) | IP20 | |
| Power | 50 W | |
| Width | 70 mm | |
| Height | 88.8 mm | |
| Depth | 56.5 mm | |
| efficiency | 90 % | |
| Output voltage DC | 12 to 14 VDC | |
| Input voltage AC | 110-240 VAC, 220 VDC | |
| Number of outputs | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
