78.1B.1.230.2403 | Finder

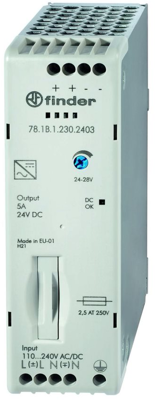

Power supply, 24 to 28 VDC, 4.5 A, 110 W, 78.1B.1.230.2403
Unit Price (€ / pc.)
196.3738 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
196.37 € *
Price list
Quantity
Price per unit*
1 pcs.
196.3738 €
3 pcs.
190.4714 €
10 pcs.
183.9383 €
25 pcs.
179.0236 €
*incl. VAT plus shipping costs
Subject to prior sale
Switch mode power supply, 78.1B.1.230.2403, Finder
Features
- Low stand-by power consumption
- Thermal protection: internal, with Vout shutdown - power OFF to reset
- Short circuit protection: Hiccup (auto-recovery) mode
- Overvoltage protection: Varistor
- Parallel working for automatic redundancy - with OR diodes
- 35 mm rail mount
- Input fuse (replaceable) + Output voltage adjustment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 4.5 A | |
| Degree of protection (IP) | IP20 | |
| Power | 110 W | |
| Width | 40 mm | |
| Height | 136 mm | |
| Depth | 100 mm | |
| efficiency | 93 % | |
| Output voltage DC | 24 to 28 VDC | |
| Input voltage AC | 100-265 VAC, 140-275 VDC | |
| Number of outputs | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
