59.34.9.024.0050 | Finder
Coupling relay 4 Form C (NO/NC), 24 V (DC), 7 A, 250 V (AC), 59.34.9.024.0050
Not suitable for new designs
Unit Price (€ / pc.)
24.6330 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
24.63 € *
Price list
Quantity
Price per unit*
1 pcs.
24.6330 €
5 pcs.
23.5620 €
10 pcs.
22.2649 €
20 pcs.
21.1106 €
*incl. VAT plus shipping costs
Subject to prior sale

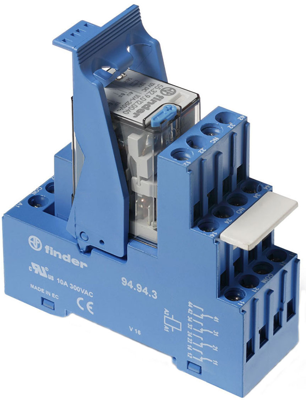

Coupling relay, 59.34.9.024.0050, Finder
Coupling relay for DIN-rail with screw terminals, 4 CO contact 7 A / 250 V AC coil voltage 24 V DC contact material AgNi, with integrated LED and EMC suppression
Features
- AC coils and DC coils
- Supply status indication and coil suppression module as standard
- Identification label
- Cadmium Free contact material options
- 35 mm rail (EN 60715) mount
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | coupling relay | |
| Rated voltage (AC) | 250 V | |
| Contact type | 4 Form C (NO/NC) | |
| Rated current | 7 A | |
| Coil voltage (DC) | 24 V | |
| Connection | screw connection | |
| Contact material | AgNi |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
